Insulation Roofing Fasteners

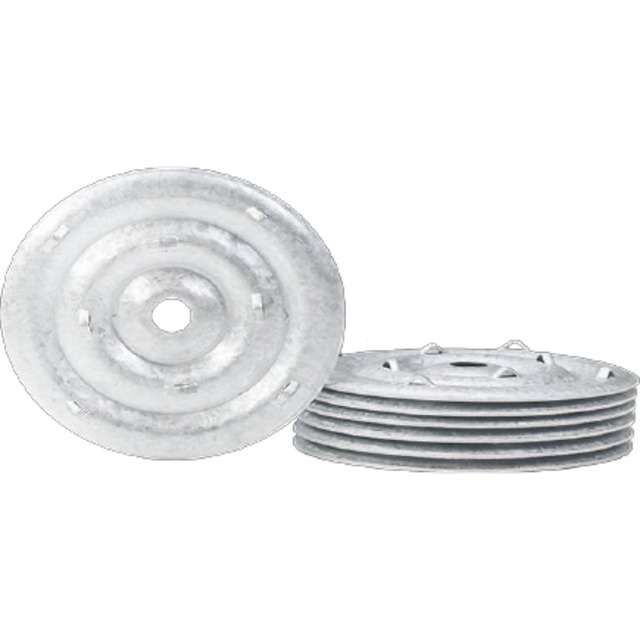

2-3/8″ Barbed Metal Seam Plate
2-3/8” Barbed Metal Seam Plates are used to fix reinforced single-ply and modified bituminous membranes to the substrate. Used with #14 #15, purlin, fluted concrete nail or 1/4” concrete spike fasteners in roofing systerm applications.
Product Description
Diameter
60mm(2-3/8″)
Thickness
0.024″ (0.8 mm)
Hole Size
6.85mm(0.270″)
Material
AZ-55 Galvalume Steel Sheet
Application
Insulation&Membrane Fixing
Corrosion Resistance
Could meet the requirement of FM4470
| Model No. | Size | Thickness | Packing | Weight(Kgs) |
|---|---|---|---|---|
| TSR-BP-2 | 2-3/8″ | 0.024″ | 1000PCS/Bucket | 18.60 |
*For sizes or specifications not listed, please contact us for further information
