Insulation fasteners are usually specified by length first, because that is the dimension that decides whether the fastener reaches the deck through the board. In practice, gauge matters more. The shank diameter is what carries the bending load and generates pullout resistance once the fastener is driven — and on a low-slope roof in a European wind zone, that is the number that separates a fixing that holds for the life of the roof from one that loosens under repeated wind uplift.

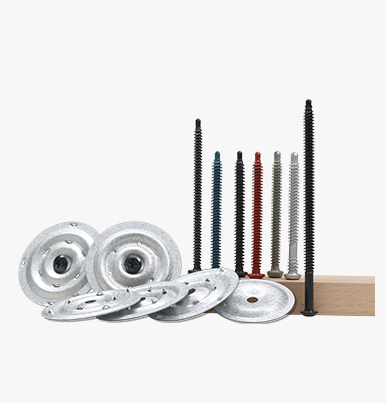

TSR supplies three gauges — #12, #14 and #15 — each built for a different combination of deck, insulation thickness and wind exposure. Here is how to choose between them.
The three gauges at a glance
| Gauge | Shank | Thread ø | Head ø | Deck |
|---|---|---|---|---|
| #12 Standard | 4.3mm | 5.58mm | 11.2mm | Steel up to 2.0mm, timber |
| #14 Heavy Duty | 4.9mm | 6.30mm | 10.5mm | Steel 12.5mm+ |
| #15 Extra Heavy Duty | 5.25mm | 6.99mm | 11.2mm | Steel, OSB, aluminium |
A larger shank generates more torque and more pullout resistance at the same length. In a coastal or high-altitude wind zone, or when fixing into thicker structural steel, that difference is what a wind uplift calculation actually turns on.
#12 Standard — light and medium duty
The #12 (4.3mm shank, T30 Torx pan head) is the entry point of the range, and the right choice where the loading does not call for more. It is suited to light-gauge steel decks up to 2.0mm and timber substrates, insulation layers up to roughly 125mm, and projects where a cost-effective, code-compliant fastener is the priority over maximum pullout capacity.
#14 Heavy Duty — the standard commercial default
For most commercial low-slope roofs with a steel deck over 2.0mm, the #14 is the correct default. Its deep buttress thread — a near-vertical load face with an angled lead face — maximises pullout resistance in the deck while keeping driving torque manageable, which is why it is the fastener behind most FM4470-tested insulation roofing assemblies.
#15 Extra Heavy Duty — maximum pullout
The #15 carries the largest shank in the insulation range (5.25mm) and is specified for high wind-load zones, thick insulation stacks where fastener length exceeds 250mm, or projects that need the widest fastener spacing for a given pullout target. It is available with a low-profile truss head for most field applications, or a flush flat head where a lower profile is required under the membrane.
Matching the fastener to the seam plate
None of these fasteners is used on its own: each is paired with a metal seam plate that spreads the point load across the membrane and stops it puncturing under wind uplift. The plate has to match both the fastener gauge and the membrane type.
| Plate | Size | Compatible with | Membrane |
|---|---|---|---|
| 2″ Metal Seam Plate | 50.8mm | #14, #15 | Non-reinforced single-ply, fully bonded |
| 3″ Metal Seam Plate | 76mm | #14, #15 | Standard roofing systems |
| Barbed plates | 60–76mm | #14, #15 | Reinforced and bituminous membranes |
Barbed plates grip the membrane through radial serrations on the underside and are required for reinforced membranes and modified bituminous systems, where a smooth plate would rotate under torque instead of clamping properly. Smooth, non-barbed plates are used with unreinforced single-ply membranes such as TPO and PVC.
Coating: CR-10 as standard
All three gauges carry the CR-10 corrosion-resistant coating as standard, giving salt-spray resistance suitable for typical commercial roofing exposure and compatibility with FM4470 system requirements, without affecting membrane bonding. For coastal sites or extended warranty requirements, TSR can supply fasteners tested to 500–2000 hours NSS (ASTM B117) or 5–30 Kesternich cycles (DIN 50018) — the same acid-rain corrosion test referenced in several European approval schemes.
Quick selection guide
| Situation | Recommended gauge |
|---|---|
| Light steel deck (≤2.0mm), timber, thin insulation | #12 |
| Standard commercial roof, steel deck >2.0mm | #14 |
| High-wind zone, thick insulation stack, maximum pullout | #15 |
| OSB deck | #12 or #14, depending on load |
The gauge selection above is a starting point, not a substitute for a project-specific wind uplift calculation: always verify against the relevant system approval or test data before finalising a specification.
TSR Europe stocks the full #12, #14 and #15 insulation fastener range together with matching seam plates, all with CR-10 coating as standard.
